When Nvidia launched Kepler with the GTX 680 I was impressed with the launch price of the card but even at such a great value it is still out of reach for some people. Just because you can’t afford the top card doesn’t mean you don’t want to experience Kepler’s performance. Of course it was only a matter of time before we saw Nvidia filling in the gaps in their product line, starting first with the GTX 690 then going to the next step down from the GTX 680, the GTX 670. Today we get to have a look to see how the performance compares to both the GTX 680 as well as AMD’s offerings. We are also very curious how it compares to the GTX 580, a card that has found its way into most of our office PC’s.

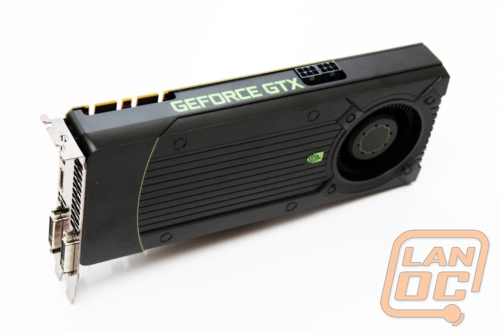

Product Name: Nvidia GTX 670
Review Sample Provided by: Nvidia
Review By: Wes
Pictures by: Wes
The GTX 670 is packed with the same features that we saw on the GTX 680 including their unique take on overclocking and GPU Boost. The 670 uses the same GK104 GPU, 2GB of GDDR5 memory running at the same clock speed as the GTX 680 as well. The GTX 670 comes with 1344 CUDA Cores and 7 SMX units compared to the GTX 680’s 1536 CUDA Cores and 8 SMX units. The base clock speed of the GTX 670 is 915MHz with the typical GPU Boost speed reaching 980MHz with this changing depending on the game/application as we explained in our original Kepler launch writeup.
As of launch the GTX 670 fits into Nvidia’s product line below the GTX 680 and above the GTX 570.
Specifications
Processing Units |
|
Graphics Processing Clusters |
4 |
SMXs |
7 |
CUDA Cores |
1344 |
Texture Units |
112 |
ROP Units |
32 |
Clock Speeds |
|
Base Clock |
915 MHz |
Boost Clock |
980 MHz |
Memory Clock (Data rate) |
6008 MHz |
L2 Cache Size |
512KB |
Memory |
|
Total Video Memory |
2048MB GDDR5 |
Memory Interface |
256-bit |
Total Memory Bandwidth |
192.2 GB/s |
Texture Filtering Rate (Bilinear) |
102.5 GigaTexels/sec |
Physical & Thermal |
|
Fabrication Process |
28 nm |
Transistor Count |
3.54 Billion |
Connectors |
2 x Dual-Link DVI 1 x HDMI 1 x DisplayPort |
Form Factor |
Dual Slot |
Power Connectors |
2 x 6-pin |
Recommended Power Supply |
500 Watts |
Thermal Design Power (TDP) |
170 Watts |
Thermal Threshold |
98° C |
