With the introduction of the GTX 460 last July, Nvidia changed the game entirely. The 460 showed amazing performance and overclockability while being priced for someone looking for a budget build. The GTX 460, seven months later, is still exactly that. With the introduction of the GTX 500 series cards recently, Nvidia is now introducing the GTX 560 Ti. While not a replacement for the GTX 460, the GTX 560 Ti occupies the position just above it. Nvidia told us that with the GTX 560 Ti the “sweet spot” just got sweeter, let’s dive in and find out.

Product Name: Nvidia GTX 560 Ti

Reviews Sample Provided by: Nvidia

Review by: Wes

Pictures by: Wes

GTX560 Ti Details

Finely tuned, transistor-level changes were incorporated into the GTX 560 Ti (like the GTX 580/570) to improve power efficiency, such as the jump from the 480 to the 580. They also added more CUDA Cores (384) and eight PolyMorph Engines. As you might be able to tell with the addition of the PolyMorph Engines, Nvidia is going all-in with DirectX11. They were very adamant that 2011 is the year of DirectX11, something we have also heard from the other side of the fence. Nvidia was quick to point out that their research shows that the average customer upgrades their GPU every three years. Nvidia’s most popular is the 8800GT, topping their Steam charts, which would put a large portion of their customers in prime upgrade time. Of course the customer that is willing to hold on to their video card for three years may not be looking to throw down $500+ for a 580. This is where the GTX 560 Ti comes in, with a suggested retail price of $249, a GTX 560 Ti is reasonably priced and good for someone who is looking for a video card that will last without breaking the bank.

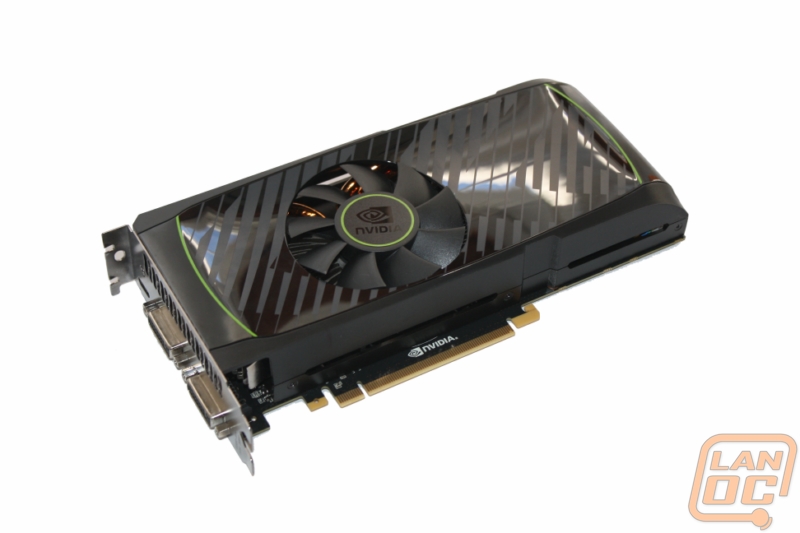

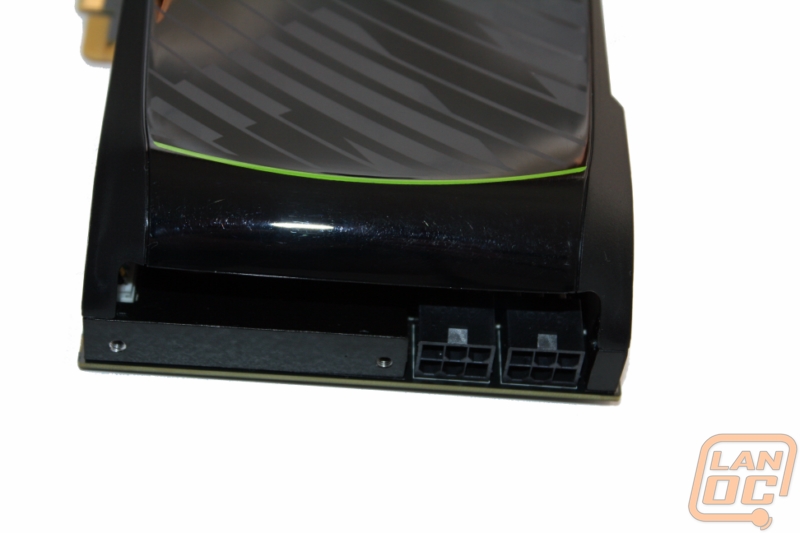

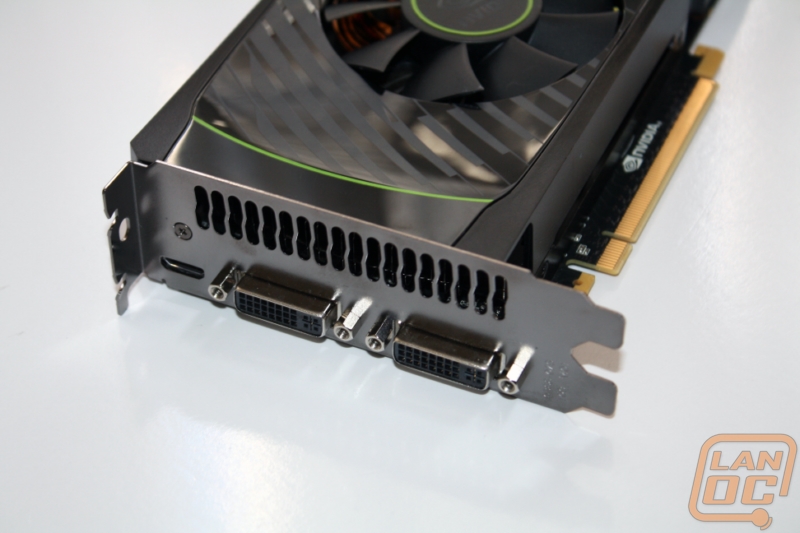

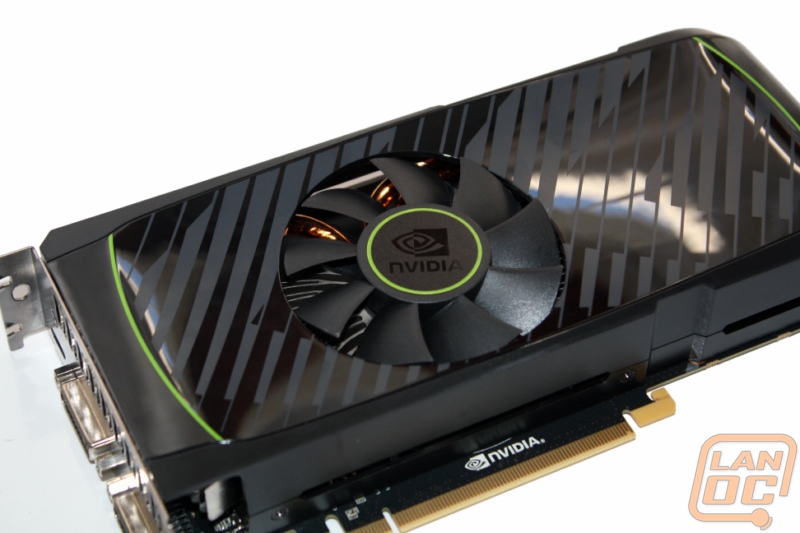

Without getting into the performance numbers (we will do that later in the review), lets break down the GTX 560 Ti. Physically, when compared to the GTX 460, the GTX 560 Ti is ¾ inch longer. The reference heatsink design looks very similar to the GTX 460’s including the protruding fan blades that I am personally not a big fan of. Both cards require two six pin connections and with those 6 pins facing the back of the card you should plan for an extra inch of space when picking a case. Those two power connections will push (according to Nvidia’s numbers) 170 Watts at Thermal Design Power (TDP). They are quick to note that this number is reached in real world testing, programs like Furmark can cause the card to draw more than that. Because of that they are recommending a 500 Watt power supply if you plan on running a GTX 560 Ti. Around back the dual slot design houses two DVI-I connections along with a Mini HDMI connection.

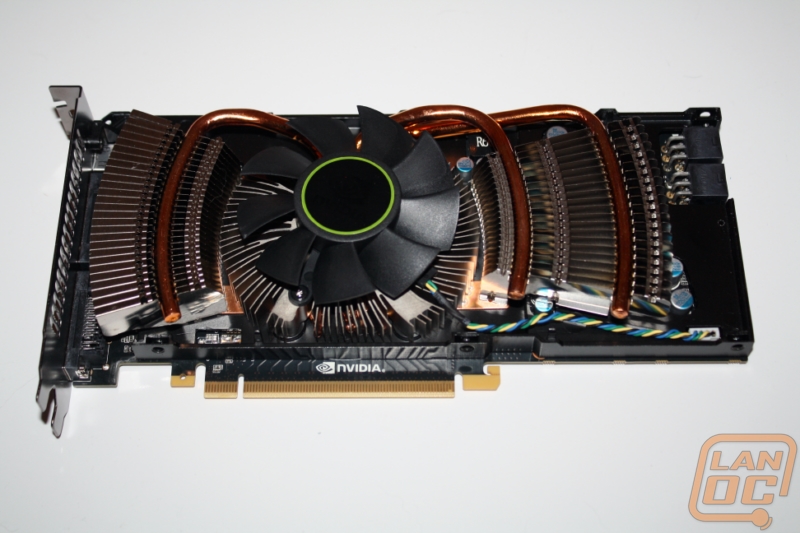

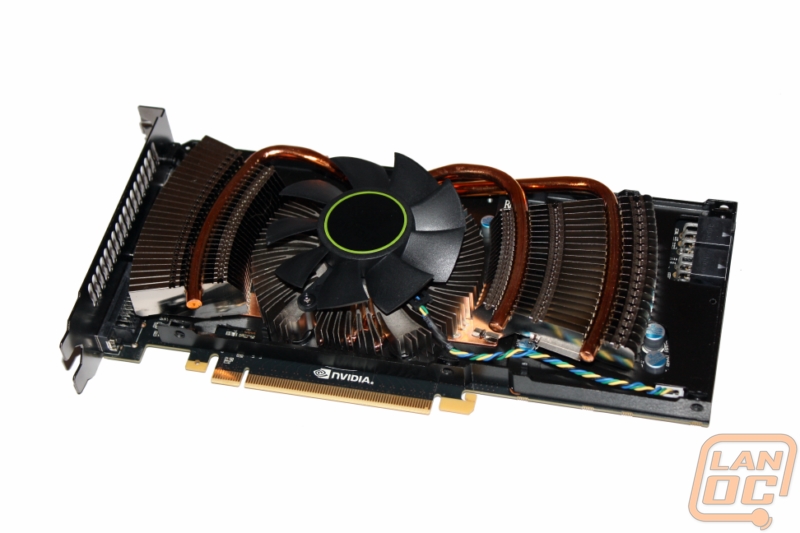

When running through the specifications (below) the overclockers among us may be quick to point out the 822 Mhz clock speed this time around. With the GTX 460 running at 675 it’s easy to assume that they just bumped up the clock speed, cutting out the overclocking margin and called it a day. Thankfully this isn’t the case. This time around they have added a beefy 4-phase power circuitry, faster 5Gbps memory modules, and improved cooling. You may remember just a minute ago I said the cooling looks the same as the GTX 460. Thanks to the plastic shroud you can’t see the larger heatsink and cooling fan, additional heatpipes, and a baseplate was added to cool the memory and power circuitry.

The changes mean even at 822 MHz, a speed that we saw on the overclocked versions of the GTX 460, you will still have more than enough headroom.

Specifications

Processing Units
Graphics Processing Clusters	2
Streaming Multiprocessors	8
CUDA Cores	384
Texture Units	64
ROP Units	32
Clock Speeds
Graphics Clock (Fixed Function Units)	822 Mhz
Processor Clock (CUDA Cores)	1644 Mhz
Memory Clock (Data rate)	4008 Mhz
Memory
L2 Cache Size	512KB
Total Video Memory	1024MB GDDR5
Memory Interface	256-bit
Total Memory Bandwidth	128.3 GB/s
Fillrate
Texture Filtering Rate (Bilinear)	52.6 GigaTexels/sec
Physical & Thermal
Fabrication Process	40 nm
Transistor Count	1.95 Billion
Connectors	2 x Dual-Link DVI-I 1 x Mini HDMI
Form Factor	Dual Slot
Power Connectors	2 x 6-pin
Recommended Power Supply	500 Watts
Thermal Design Power (TDP)	170 Watts
Thermal Threshold	100° C

Packaging

Normally I would go over the packaging but being a reference card it is only shipped in a static bag (along with the FedEx box and bubble wrap of course). Besides you guys are more concerned with how the GTX 560 Ti is going to perform, right?

Our Test Rig

Intel i7 930 CPU Running at 2.8 (Stock)

Gigabyte X58A-UD5 Motherboard

Patriot Sector 7 Ram Triple Channel

Seagate Constellation 2tb Hard drive

Corsair H50 Water Cooling

Sparkle Gold Class 750 Watt PSU

http://www.highspeedpc.com/ Test Bench

Our Testing Procedures

All of our in game performance testing was run at 1920x1080, you can see the exact settings below. Here are the details for each of our tests.

Call Of Duty Black Ops (1920x1080 – high settings, first scene starting after the cut scene, recorded using fraps)

Battlefield Bad Company 2 (1920x1080 – high settings, first scene starting after the cut scene, recorded using fraps)

Dirt 2 (1920x1080 – 4x MSAA – high settings, in-game benchmark)

Metro 2033 DX11 test (built-in benchmark, 1920 x 1080; DirectX: DirectX 11; Quality: Very High; Antialiasing: MSAA 4X; Texture filtering: AF 4X; Advanced PhysX: Enabled; Tessellation: Enabled; DOF: Disabled)

Metro 2033 DX10 test (built-in benchmark, 1920 x 1080; DirectX: DirectX 10; Quality: Very High; Antialiasing: MSAA 4X; Texture filtering: AF 4X; Advanced PhysX: Enabled; Tessellation: Enabled; DOF: Disabled)

Mafia 2 (built-in benchmark, 1920x1080, PhysX on, high settings)

Synthetic Benchmarks For video cards our synthetic benchmarks are limited to 3DMark Vantage and 3DMark Vantage 201. 3DMark Vantage is run with PPU turned off with results from both the performance and high settings. In 3DMark Vantage 2011 we run both performance and extreme benchmarks.

Performance

With our benchmark processes changing recently some of the results below are only against a few cards while the others are against many cards. We will be filling in the blanks slowly. You can still see the GTX 560’s performance both in game and through synthetic benchmarks.

Our 3DMark Vantage testing tells two different stories between 3DMark Vantage and 3DMark Vantage 2011. When compared to AMD’s HD6970 (with a $120+ price difference by the way), you see the GTX 560 Ti comes in not too far behind on 3DMark Vantage but on 2011 the gap percentage-wise is much greater. In Vantage 2011 we do see the GTX 560 Ti actually outperforming AMD’s flagship card in Physics processing though. In fact even our in-game testing showed the GTX 560 Ti keeping up with the HD6970, even passing it in some PhysX heavy applications.

Of course it’s not just about the cards performance, even though it is MOSTLY about it. It’s also important that the card have a tolerable noise level and that the cooler keep everything cool in the heat of the battle. In our case the noise level was comparable to our 460 and was only noticeable when the fan speed went up. In my testing I wasn’t even able to get the fan to speed up in game or otherwise. My idle temps ran at 28 to 29 degrees Celsius, with temps reaching 58 while running through 3DMark Vantage 2011.

I touched early about the overclocking headroom of the GTX 560 Ti but I had to put it to the test myself also. While messing around a little, without spending too much time with it I was able to get stable results while at a healthy 942 MHz core clock speed, a nice jump over the 822 Mhz stock. I also received word that Gigabyte will be introducing a 1 Ghz model, I am sure with a little tuning that clock is obtainable to anyone willing to put the time in. Running 3DMark Vantage 2011 performance setting on the overclocked card netted a bump from 3995 to 4650 on our GPU score, inching even closer to the HD6970 without adding anything to the cost.

Overall

I think Nvidia summed it up perfectly when they said the sweet spot just got a little sweeter. For those of you who are looking for the best performance money can buy, you should skip over the GTX 560 Ti, but if you have to save money wherever you can to save for your next video card upgrade you shouldn’t wait any longer. With the GTX 460 still staying around the GTX 560 Ti comes in at just under $250, less than what it would have cost to buy the 5 games I used to test the card (when the game’s first came out obviously) . The only reason I could give to not go with a GTX 560 Ti is if you wanted to go with TWO GTX 560 Ti’s.
