titleIt seems like it was only a few weeks ago I was talking about Nvidia’s latest card the GTX560 Ti. Now here we are launching our review of the GTX550 Ti, the little brother to the GTX560 Ti. The GTX550 Ti fills the gap between the GTS 450 and the GTX 460, with its eye directly on AMD’s popular HD5770. With aggressive performance and pricing, Nvidia hopes to capture the budget market playing the same game AMD plays. How will it hold up against the aging HD5770, let’s take a look.

Product Name: Nvidia GTX 550 Ti

Review Sample Provided by: Nvidia

Review by: Wes

Pictures by: Wes


Specifications

Processing

Units

Graphics Processing Clusters

1

Streaming Multiprocessors

4

CUDA Cores

192

Texture Units

32

ROP Units

24

Clock

Speeds

Graphics Clock

(Fixed Function Units)

900 Mhz

Processor Clock (CUDA Cores)

1800 Mhz

Memory Clock

(Data rate)

4104 Mhz

Memory

L2 Cache Size

384KB

Total Video Memory

1024MB GDDR5

Memory Interface

192-bit

Total Memory Bandwidth

98.5 GB/s

Fillrate

Texture Filtering Rate (Bilinear)

28.8 GigaTexels/sec

Physical

&

Thermal

Fabrication Process

40nm

Transistor Count

1.17 Billion

Connectors

2 x Dual-Link DVI-I

1 x Mini HDMI

Form Factor

Dual Slot

Power Connectors

1 x 6-pin

Recommended Power Supply

400 Watts

Thermal Design Power (TDP)

116 Watts

Thermal Threshold

95° C


Packaging

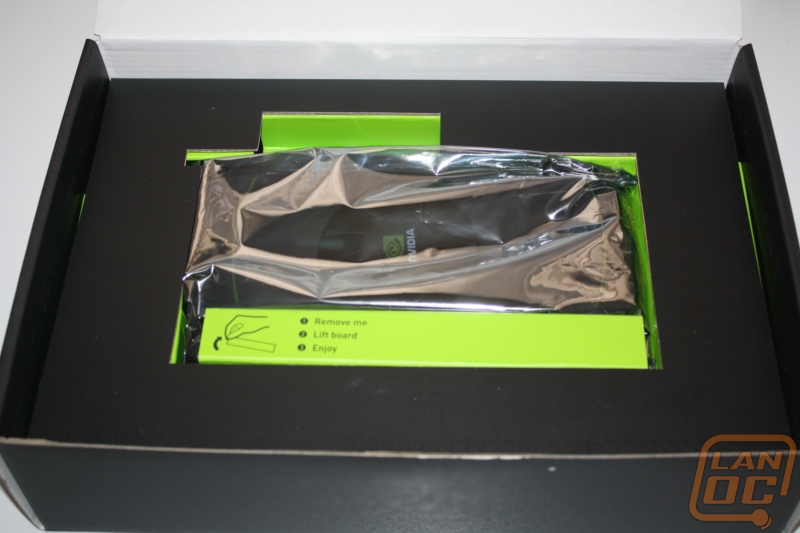

Normally with a product launch we receive the reference cards in unexciting packaging, normally just wrapped in bubble wrap inside of a Fed-Ex or USP box. With the GTX550 Ti things were a little different, different enough that I thought everyone would be interested in taking a look. Officially I wasn’t able to get word that this card would be sold in Best Buy under the Nvidia brand like we have see with the GTX 460, but take a look at this packaging and tell me what you think.

Image_1

Image_2

Image_3

Image_4

Image_5

Image_6

Obviously Nvidia cares about this launch, as they should. The GTX550 Ti will fall right into their bread and butter. If my bread and butter came in packaging this spiffy I would be eating nothing but toast!


GTX 550 Ti The Sniper is back

When Nvidia launched their 400 series, each of the gaming cards were given a name. The GTS 450 was called “The Sniper”. Well Now that they are introducing the GTX 550 Ti “The Sniper” is back with 28% faster performance (per Nvidia’s testing). To get that performance the GTX 550 Ti’s GPU runs at 900Mhz, 120Mhz faster than the GTS450. They also upgraded the memory controller to support mixed density memory chips, allowing to run 1GB of frame buffer with the 192-bit memory interface. Without the mix density support they have the choice to run ether 768 MB of memory or 1.5GB, adding to the cost to go beyond 768MB. The GTX550 Ti boast 70% more memory bandwidth over the GTS450. You can attribute most of that to the jump from 128-bit to 192-bit on the memory controller.

Image_7

The GTX 550 Ti utilizes the Fermi architecture so you can expect all the same bells and whistles that we have seen on other 400 and 500 series cards. That means you will get to enjoy DirectX11 visuals, especially amazing tessellation performance with the workload being spread across four dedicated PolyMorph Engines. That is compared to just one PolyMorph engine on the HD5770. Because of that you can expect better performance on games with heavy tessellation like HAWKX 2 and Civilization 5.

You will also get support for Nvidia’s other technologies like Nvidia Surround, PhysX, and 3D Vision. Just because it’s a budget card, doesn’t mean you have to live without the same features as the big dogs. You still have 3D Vision support as long as you have the correct monitor and the glasses kit. When paired up with a second card you can run NVIDIA Surround with three monitors. Last but not least you also get full PhysX support, something that will come in handy in games like Mafia 2.

Board Layout

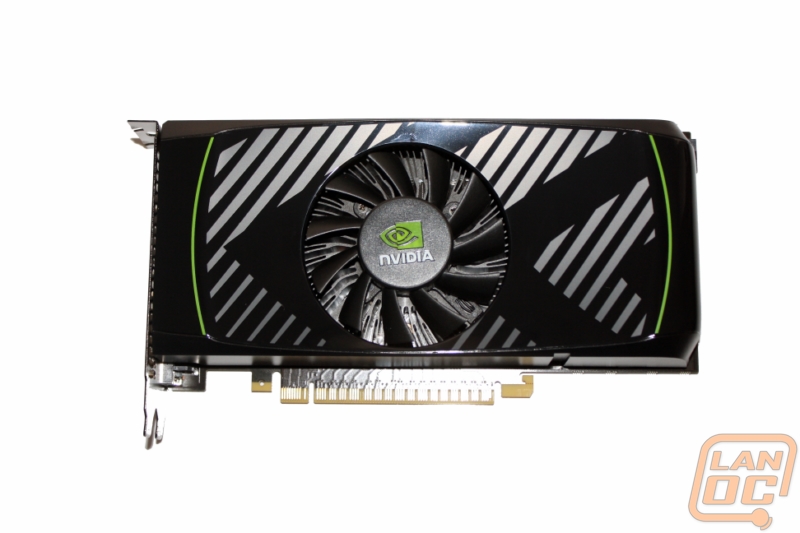

Nvidia used the same cooling solution on the GTX 550 Ti as they did with the GTS450 as you can see in the photo below. That means they still have the protruding fan blades than can nip you if reach near them while they are running.

Image_8

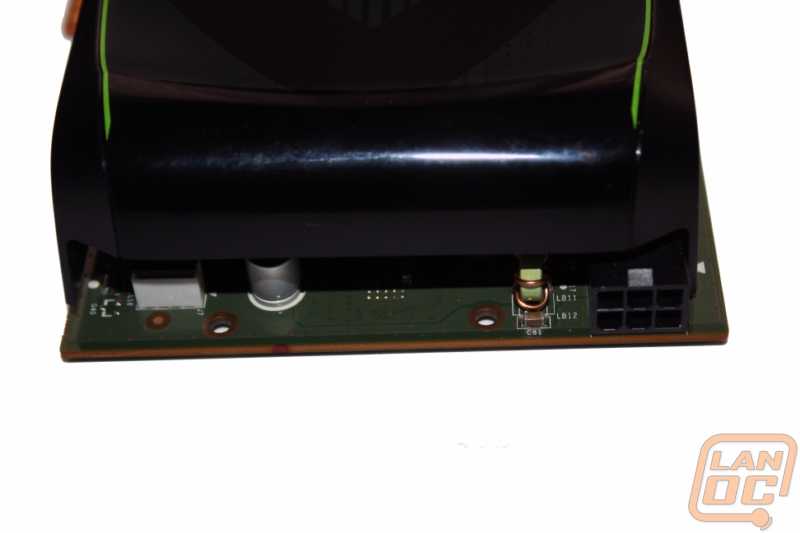

You will only need one six pin connection to power up this beast

Image_16

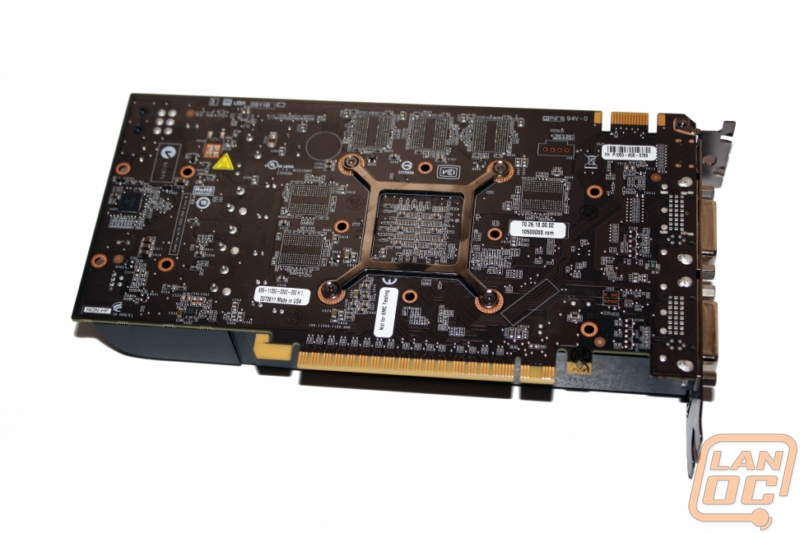

This time around the PCB is black

Image_11

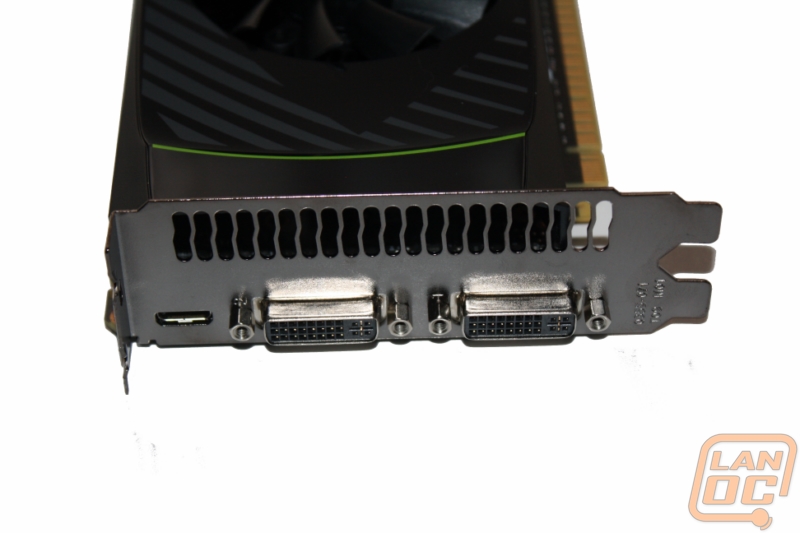

Two DVI dual link connections and a mini HDMI tucked all the way at the top. I always hate the Mini HDMI, even more because they pack it all the way at the top making it a tight fit with the cable. They do leave room for a full cooling slot though.

Image_10

When put next to a GTS 450 you will be hard pressed to find many differences on the back of the card other than the different memory arrangement around the GPU. After a close examination I could only find three other minor differences beyond the memory.

Image_13

Image_12

The GTX550 Ti (third card down) with the GTX580(Top), GTX 560 Ti(second from the top), and the GTS450(bottom)

Image_14

When next to some of its family members you can see the similarities between the GTS 450 and the GTX550 Ti, including length. The GTX 580 does a good job of making everyone else look a little shorter also.

Image_15

Our Test Rig

Intel i7 930 CPU Running at 2.8 (Stock)

Gigabyte X58A-UD5 Motherboard

Patriot Sector 7 Ram Triple Channel

Seagate Constellation 2tb Hard drive

Corsair H50 Water Cooling

Sparkle Gold Class 750 Watt PSU

http://www.highspeedpc.com/ Test Bench


Our Testing Procedures

All of our in game performance testing was run at 1920x1080, you can see the exact settings below. Here are the details for each of our tests.

Call Of Duty Black Ops (1920x1080 – high settings, first scene starting after the cut scene, recorded using fraps)

Battlefield Bad Company 2 (1920x1080 – high settings, first scene starting after the cut scene, recorded using fraps)

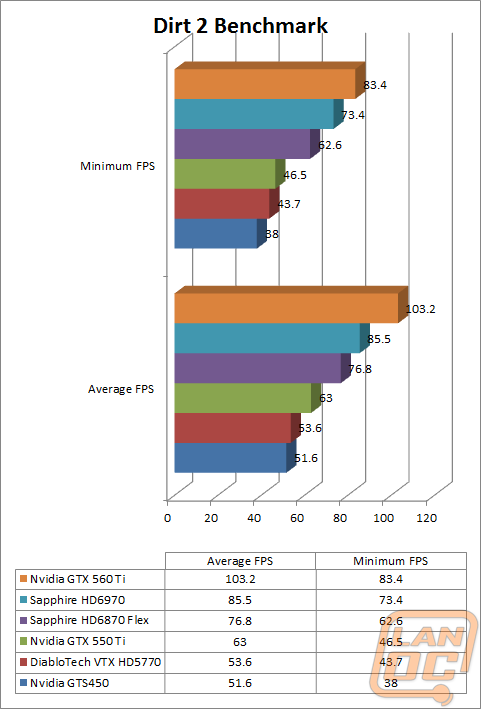

Dirt 2 (1920x1080 – 4x MSAA – high settings, in-game benchmark)

Metro 2033 DX11 test (built-in benchmark, 1920 x 1080; DirectX: DirectX 11; Quality: Very High; Antialiasing: MSAA 4X; Texture filtering: AF 4X; Advanced PhysX: Enabled; Tessellation: Enabled; DOF: Disabled)

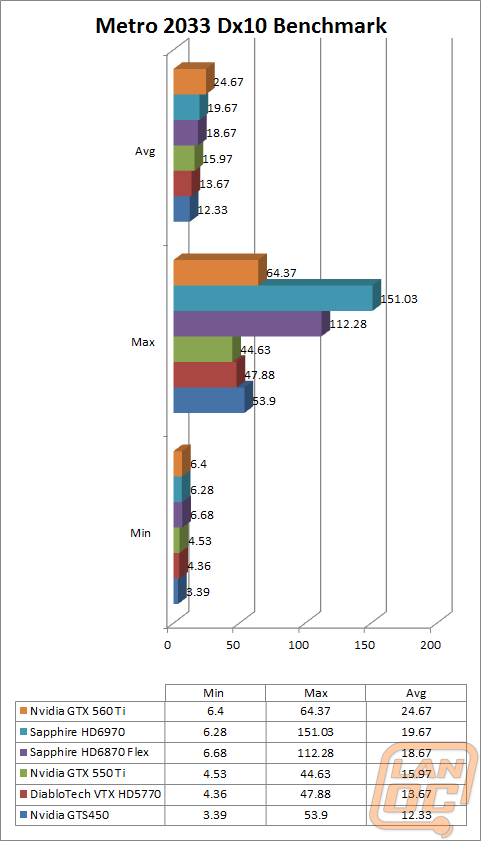

Metro 2033 DX10 test (built-in benchmark, 1920 x 1080; DirectX: DirectX 10; Quality: Very High; Antialiasing: MSAA 4X; Texture filtering: AF 4X; Advanced PhysX: Enabled; Tessellation: Enabled; DOF: Disabled)

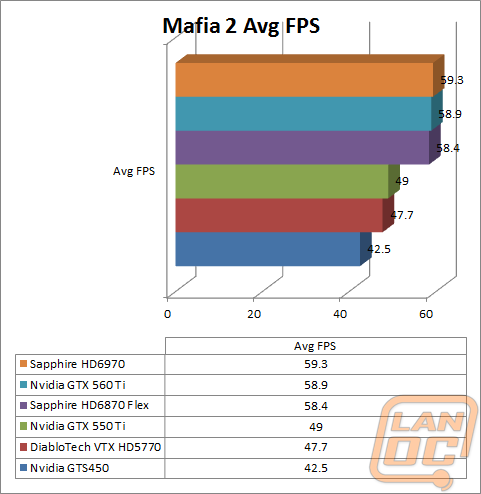

Mafia 2 (built-in benchmark, 1920x1080, PhysX on, high settings)

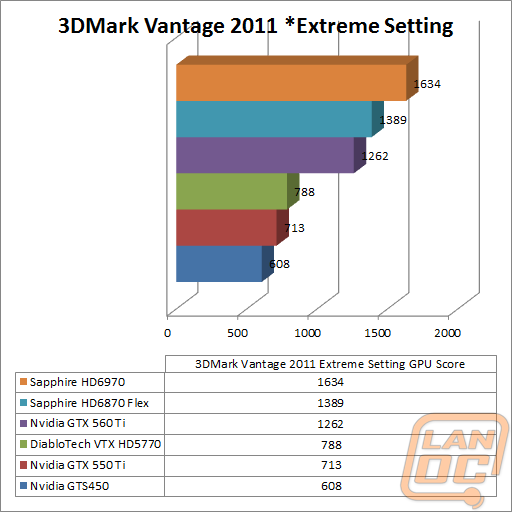

Synthetic Benchmarks For video cards our synthetic benchmarks are limited to 3DMark Vantage and 3DMark Vantage 201. 3DMark Vantage is run with PPU turned off with results from both the performance and high settings. In 3DMark Vantage 2011 we run both performance and extreme benchmarks.


Performance

To start things off I ran through our standard tests as listed above. To go along with it I busted out our GTS450 and HD5770 to redo our testing with up to date drivers and to have results using our more in-depth testing process that we put in place recently. Here are the results.

vantageperformancewm

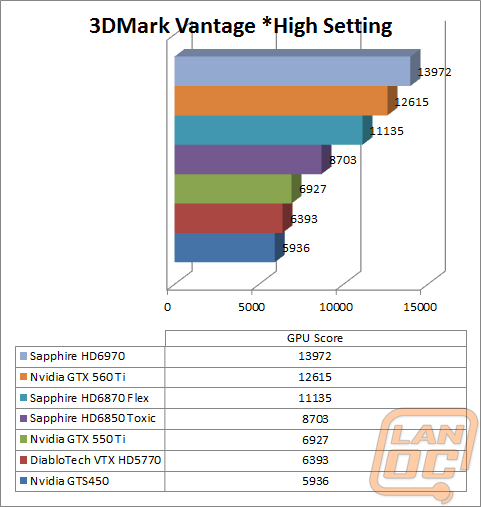

vantagehighwm

vantage2011performancewm

vantage2011extremewm

bfbc2wm

blackopswm

dirt2wm

mafia2wm

metro2033dx10wm

metro2033dx11wm

Having already gone over the differences between the GTX 550 Ti and the GTS450 it wasn’t a surprise that the new card outperformed the GTS450 in every test by a considerable margin. On top of that Nvidia bested the HD5770 is every in game test but the HD5770 did edge out on ¾ of the synthetic benchmarks. Of course are you going to enjoy your synthetic benchmark scores or actual in game performance.

Image_9

Our testing also includes seeing how well they keep the card cool and quiet with a good cooling design. As with all of the other 500 series cards, the cooling performance was top notch with their reference design. I did find that the hard made a slight fan noise at just about every speed. I think it has to do with the design having the fan stick out a few mm to the rest of the shroud. In a PC with other noisy components it shouldn’t be an issue, but if you are looking for something silent you may want to look at designs with aftermarket cooling as they come out.

Overall

Nvidia set out to create a card that is direct competition with AMD’s HD5770 and after seeing the cards performance I think they did a great job. Every in game test we ran showed the GTX 550 Ti outperforming the HD5770, only seeing the HD5770 edge out in synthetic benchmarks. Of course the performance is nothing without the right price point. With a suggested retail of $149 the GTX550 Ti is pushing a little high when compared to the current prices for HD5770’s. I would expect to see a little more adjustment in the pricing when things settle, if not this card may have a hard time getting the performance/price crowd. The card itself is an amazing performer, if you are looking for all of the Nvidia features like 3D and PhysX you really can’t go wrong, but until the price point settles the value of the GTX550 Ti is going to heavily depend on its selling price, I hope it comes down, it could be the bread and butter card to get this summer.

At $125 this card would be a 9/10, $115 would put it at 10/10
