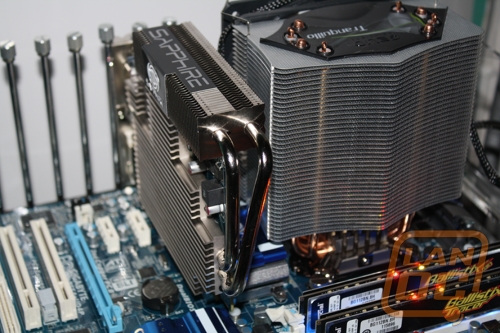

titleThe “Ultimate” product line from Sapphire covers more than just the 5550 that we recently took a look at. Today we are taking a look at their HD5670 Ultimate that sports a similar heatsink design as the HD5550 but with the obvious performance increase from the faster 5670 lineup. The HD5670 line is touching on budget gaming performance more than the limited performance we saw out of the HD5550. With Crossfire and Eyefinity capability it could be a hidden gem, the only way we can find out is to put it to the test. Let’s jump in.

Product Name: Sapphire HD5670 Ultimate 1GB

Review Sample Provided by: Sapphire

Review by: Wes

Pictures by: Wes



1 x Dual-Link DVI
1 x HDMI
1 x DisplayPort


775 MHz Core Clock
40 nm Process Technology
400 x Stream Processors


1024 MB Size
128 -bit GDDR5
4000 MHz Effective


Driver CD
SIM HD(Enhance the video quality for IM)-(Full package only)

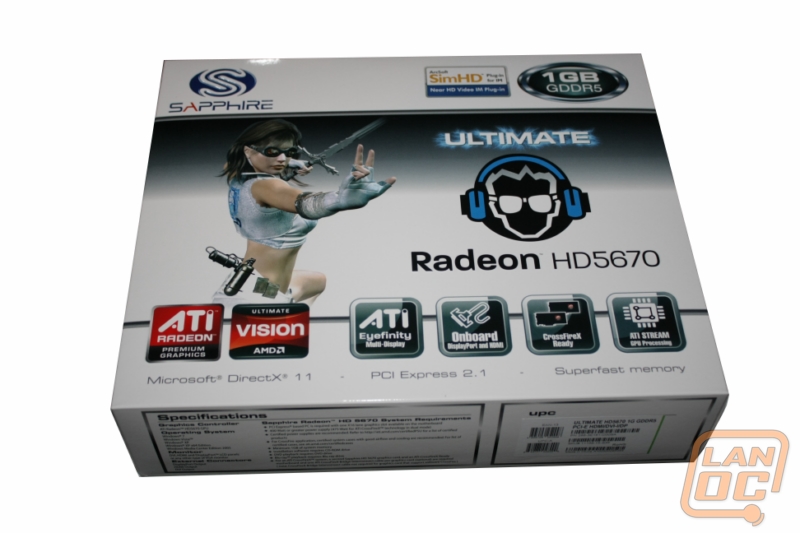

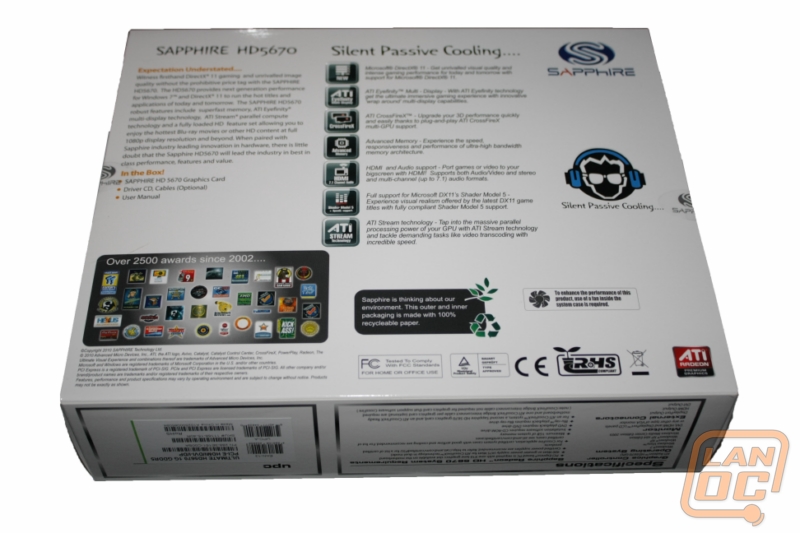

The HD5670 came in almost identical packaging as the HD5550, with the obvious difference being the new product name and upgraded information and features on the back. Inside the card was well protected inside of a padded bag that was also inside of a cardboard tray. Along with the card you also get a driver disc, a case badge, SimHD software, and a product manual. Oddly no adapters were included, not that you would need one with the cards selection of hookups, but it’s always nice to get them.

Our Test Rig

Intel i5 661
Gigabyte GA-EXS8-UD4P
4 gigs of DDR3 Crucial Ballistix Tracer Ram
Cooler Master Silent Pro M 850 PSU
OCZ Agility SSD
DVD Burner

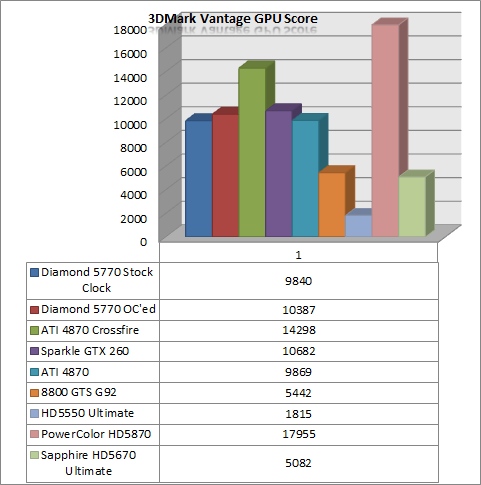

The best part of reviewing video cards is that I can play games and call it work. I ran our typical tests using both Battlefield Bad Company 2 and Modern Warfare 2. I also use 3DMark Vantage as a synthetic benchmark to judge the cards performance. Our game tests are ran at 1920x 1980 with the texture settings turned to their highest settings. Short of a 30 inch monitor, this is the highest resolution that you will be running. Anyhow, here are the results of my playtime.. I mean testing.

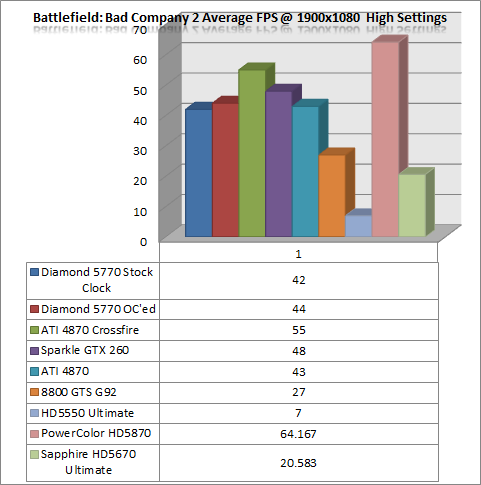

I wasn’t shocked to see Battlefield Bad Company 2 to run a little slow on the HD5670, but it was a major improvement over the HD5550. If you weren’t looking for the highest settings you wouldn’t have any problem running BF:BC2. Modern Warfare on the other hand ran at just a hair under 60 frames per second, with the settings set to their highest level on a high resolution the HD5670 Ultimate would be a great card to play Modern Warfare 2 on.hd5670u_6

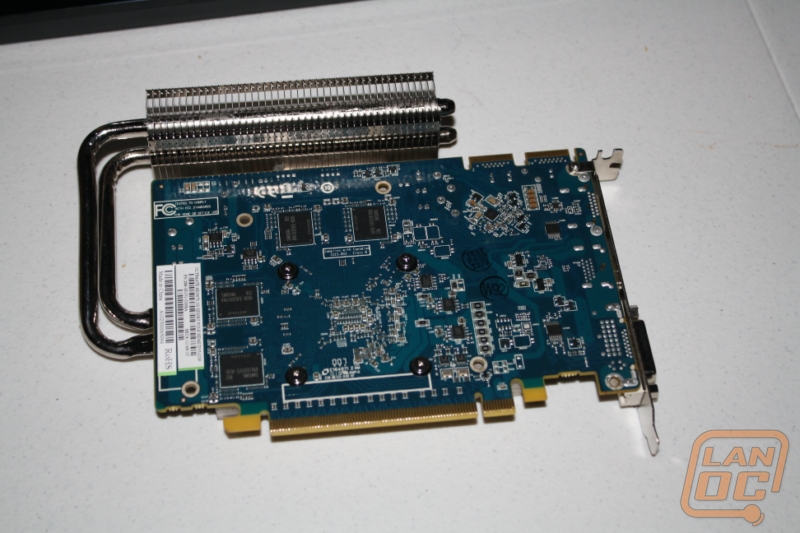

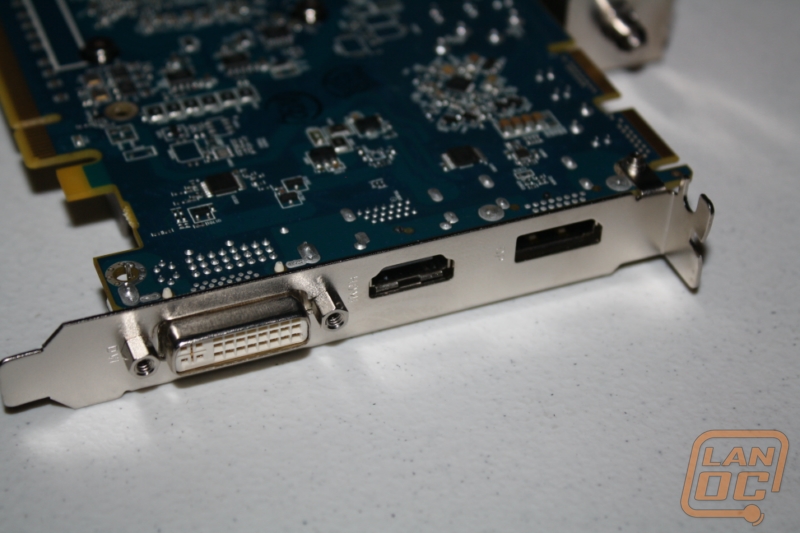

hd5670u_7 hd5670u_8 hd5670u_9 hd5670u_11

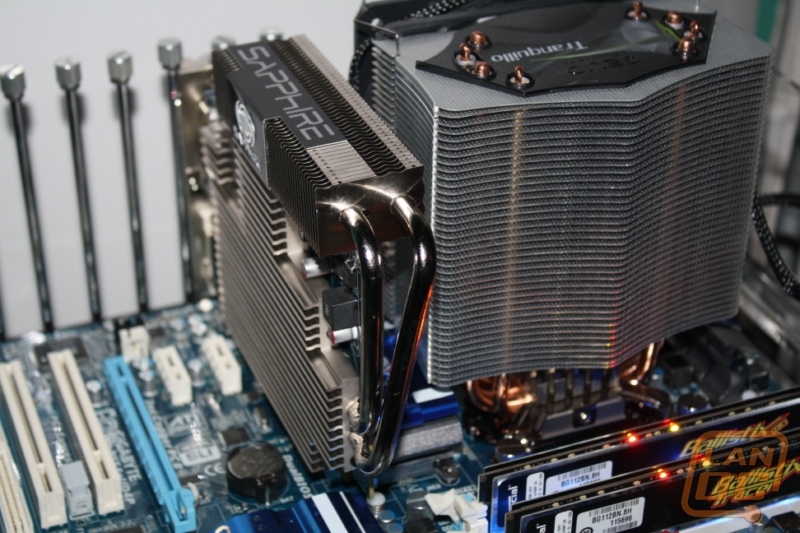

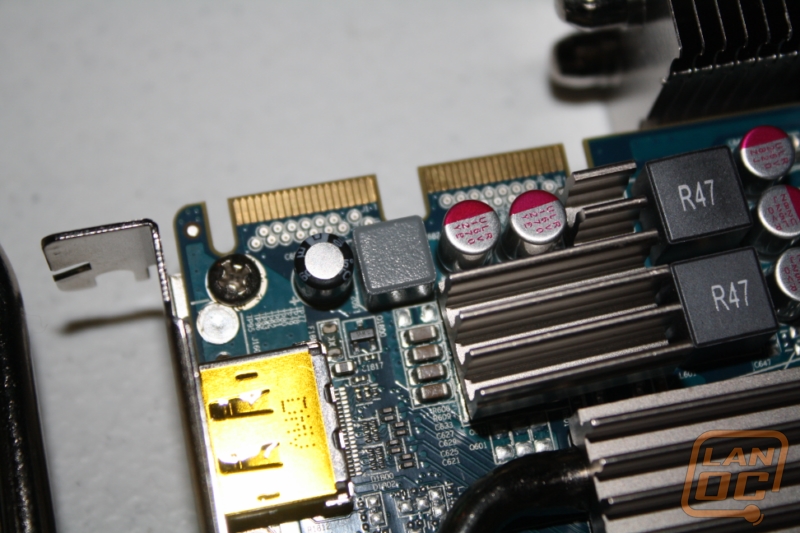

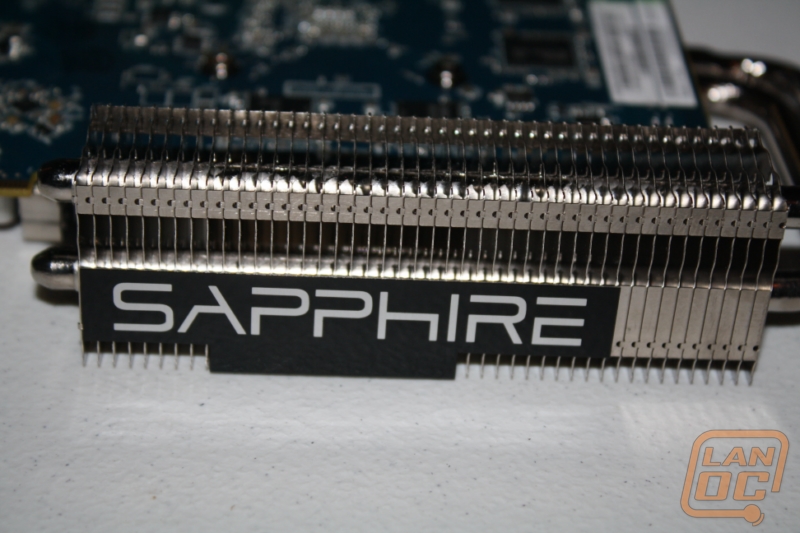

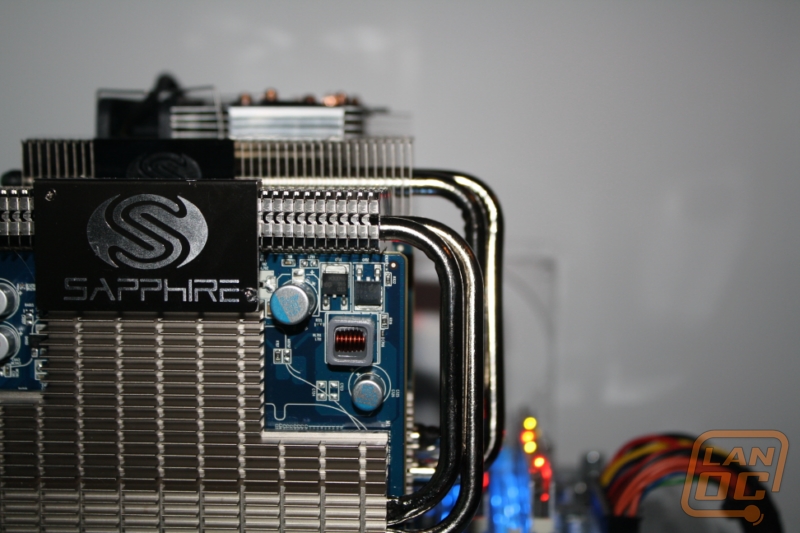

With this being the Ultimate edition the HD5670 has a large fan-less heatsink and one gig of GDDR5 ram. The fan-less heatsink means this card is dead silent. The real shocker was how well the heatsink does at cooling. On our test bench we tested this card with the CPU heatsink positioned both blowing down over it, and out the back. With the heatsink positioned to blow the air over the GPU and I wasn’t able to get the card anything close to being hot, even during our testing. Without the air blowing over it the card was still able to keep things cool, even while under full load. Putting this in an HTPC with at least one fan will be more than enough to keep the temps down. Once again we are impressed with the cooling performance Sapphire's silent cooling solution.

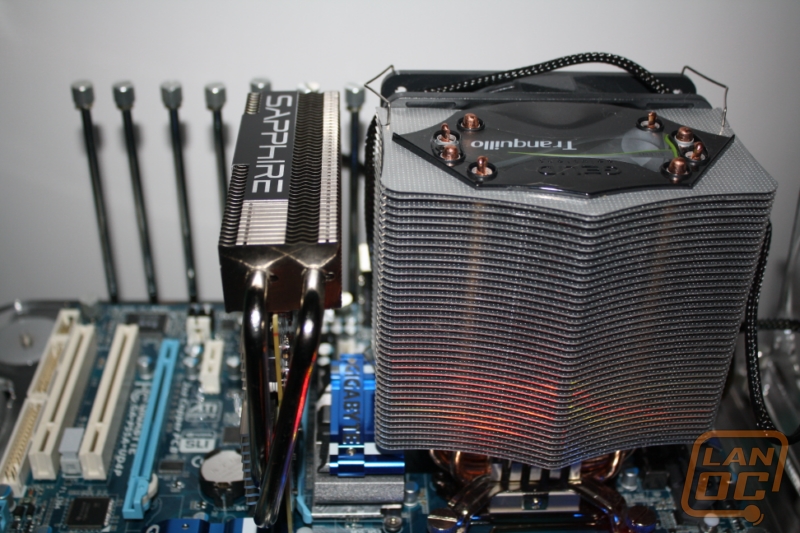

hd5670u_13 hd5670u_14 hd5670u_10


Sapphire worked its magic on the HD5670 and made the HD5670 Ultimate. With a full gig of GDDR5 ram and their silent fan-less heatsink design it’s both at home in your HTPC or a budget gaming rig. Gaming performance was a major improvement over onboard video and more than enough to play most of today’s popular games. Of course this isn’t a top of the line card, it did have issues running BF:BC2 but at just under $120 MSRP I wouldn’t expect it too anyhow.
