With SSD’s becoming more and more affordable they are slowly starting to reach the hands of eager enthusiasts and gamers. In fact, we are just now starting to see a few pop up in rigs at our own LAN parties. One of the biggest brands in this market is OCZ and they have a variety of models including the reasonably priced Agility series. One of which we will be looking at today.

Product Name: OCZ Agility Series 60 GB SSD

Review Sample Provided by: OCZ

Review by: Wes

Pictures by: Wes



Specifications

Capacities available

32GB, 64GB, 128GB

Onboard Cache

64MB

TRIM Support

Yes

Seek Time

< .1ms

Form Factor

2.5 inch

Dimensions

99.8 x 69.63 x 9.3mm

Weight

77g

Operating Temp

0°C ~70°C

Storage Temp

-45°C ~ +85°C

Low Power Consumption:

2W in operation
.5W in stand by

Shock Resistant

up to 1500G

RAID Support

Yes

MTBF

1.5 million hours

Warranty

3-Year Warranty

30GB Max Performance

Read

Up to 185 MB/s

Write

Up to 100 MB/s

Sustained Write

Up to 60 MB/S

60GB Max Performance (drive we are testing)

Read

Up to 230 MB/s

Write

Up to 135 MB/s

Sustained Write

Up to 80 MB/S

120GB Max Performance

Read

Up to 230 MB/s

Write

Up to 135 MB/s

Sustained Write

Up to 80 MB/s

Part Numbers

30GB (32GB)

OCZSSD2-1AGT30G

60GB (64GB)

OCZSSD2-1AGT60G

120GB (128GB)

OCZSSD2-1AGT120G

250GB Max Performance

Read

Up to 230 MB/s

Write

Up to 135 MB/s

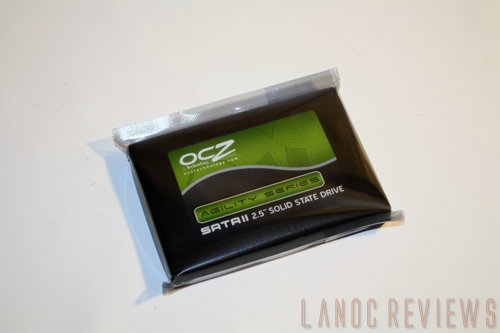

oczagility_11

Packaging

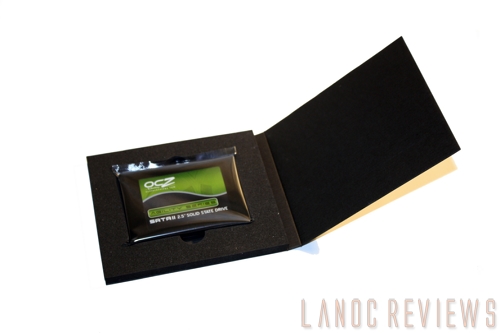

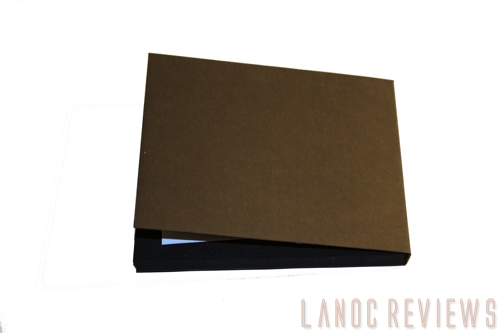

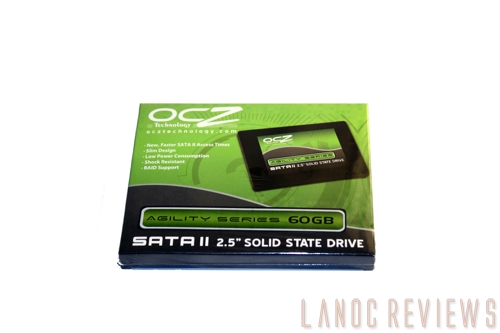

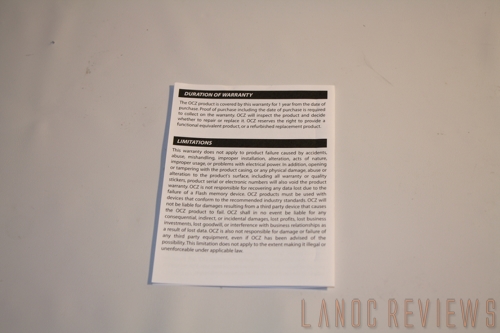

OCZ packed the Agility in a bright green box with all of the information you need to know on the front or back. Up front, you have a nice picture of the drive, the capacity, and a few of its features. On the back, there is a specification listing that gives you an idea of what to expect with size, shock resistance, and performance. With OZC claiming to provide read performance of up to 230 MB/s I have to get this thing installed and up for testing! Inside: the drive is safe and sound inside of a piece of foam with a cutout for the drive in the middle. The included installation guide is short and simple explaining how to treat the drive along with how to install it and get it up and running. It goes on to explain the included one-year warranty for those who are worried about having problems.

oczagility_4

oczagility_5 oczagility_6 oczagility_7

oczagility_8 oczagility_9 oczagility_10



Performance

In order to test the performance of the Agility I gathered up a few other drives we have tested to put up against it. Using HDTach as our benchmark to get the most consistent results I ran the tests, here are the results.



graph2

The results were impressive when compared to some of the highest performing hard drives. When you compare the performance of the Agility against that of the more expensive Crucial SSD the Agility didn’t perform nearly as well. I was so concerned with those numbers that I switched to ATTO disc benchmark just to double check. Here are the results of the ATTO test.

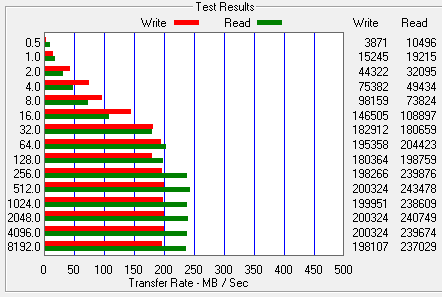

ATTO Benchmarks Agility vs. Crucial

crucial

Crucial M225 128Gb SSD

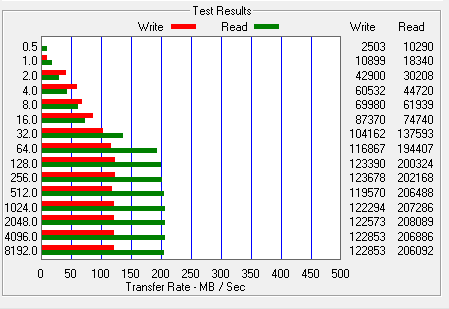

OCZ_Agility

OCZ Agility 60 Gb SSD

After talking with OCZ about the performance issues, an update to the 1.5 version of the firmware gave me a boost of almost 20MB/s in our original test. *the original graph has been updated to reflect the new results. We where also asked to give CrystalDiskMark a try in our comparison. Here are the results, much closer to what we expected.

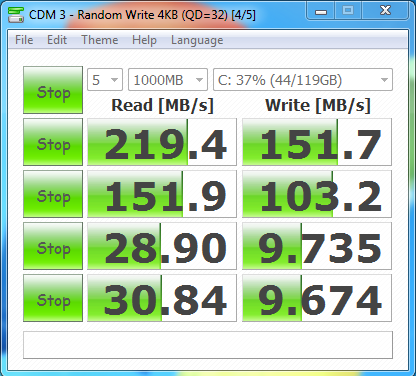

crucialm225

Crucial M225 128Gb SSD

agility60g

OCZ Agility 60 Gb SSD

As you can see, the Agility performed much closer to the numbers that OCZ advertised. Considering the price difference between the Crucial drive it’s unfair to put the Agility down for coming in below it. Overall, the Agility’s performance is very impressive, even more when considering it was one of the cheapest drives tested!

oczagility_12



oczagility_14

oczagility_13 oczagility_16 oczagility_17

Overall

When you’re in the market for an SSD you have to first get over the sticker shock from the dropping but still high prices. OCZ brings the Agility in to bridge the gap between cheap but slower standard hard drives and the much more expensive high end SSD’s. You don’t lose the features of high end SSD’s like Trim and you don’t have to worry about the issues people experienced when SSD’s where first introduced. The 60 gig size comes in perfect for someone who plans on just running their OS or games off of one drive along with an NAS or larger drive for file storage. When keeping the price in mind this is one of the best buys in SSD’s right now!
