IMG_6693_lrA while back I took a look at a case from LanCool called the K58. LanCool is a Lian Li company that gives you Lian Li quality on a budget. Today I have the chance to take a look at Lian Li’s new PC-B70 case. This is my first experience with an all aluminum case; I’m excited to take a closer look.

Product Name: Lian Li PC-B70

Review Sample Provided by: Lian Li

Review by: Wes Compton

Pictures by: Wes Compton

IMG_6691_lr

Specifications

Model

PC-B70

Case Type

Full Tower Chassis

Dimensions

220mm x 595mm x 590mm (W,H,D) 220mm x 595mm x 590mm (W,H,D)

Front bezel Material

Aluminum

Color

Black

Side Panel

Aluminum

Body Material

Aluminum

5.25" drive bay (External)

5 ( one for 3.5 inch convertor)

3.5" drive bay (External)

1

3.5" drive bay (Internal)

10

Expansion Slot

7

Motherboard

E-ATX, ATX, M-ATX

System Fan (Front)

2 x 140mm blue LED fan (1200RPM)

System Fan (Top)

None

System Fan (Rear)

2 x 120mm Ball-Bearing Fan (1500RPM)

I/O Ports

USB2.0 x 4, IEEE1394 x 1, ESATA x 1, HD+AC97 Audio

IMG_6692_lr

Packaging

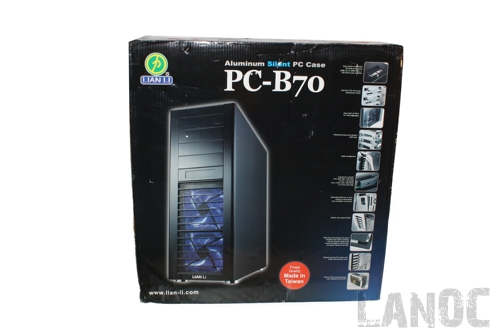

Keeping it simple, Lian Li packed the PC-B70 into a black box with a large picture of the PC-B70 on it. On the right side of the packaging, there are pictures and short descriptions of each important feature. Inside, the case was secured with Styrofoam on each side and inside of a plastic bag to keep moisture away. Overall, very simple but really do you need anything more than that?

IMG_6693_lr

Outside

Unlike most other cases with their plastic parts, the entire outside of the PC-B70 is made out of aluminum. Up top there isn't much going on, you will find the power and reset buttons along with an aluminum door that hides four USB 2.0 ports, both audio jacks, firewire, and an eSATA port. Unlike most of the cases we have tested recently Lian Li didn't include a fan up top, choosing to keep a clean look instead. Both side panels were also uneventful with no windows or vents.

IMG_6695_lr

IMG_6698_lr

On the back of the PC-B70 there is a little more excitement, most notably, the side panel locking mechanism uses an attached thumbscrew. Once unscrewed, the thumbscrew allows you to pull the latch out, unlocking the door. The mechanism itself reminds me of the Cosmos's latch but this design is much more secure. Also on the back is an 120mm fan with a traditional wire fan guard. If that's not enough to keep things cool almost the entire back of the case is vented in some shape or form.

IMG_6705_lr

IMG_6706_lr

IMG_6707_lr

IMG_6718_lr

IMG_6720_lr

IMG_6721_lr

IMG_6722_lr

Out front I was impressed with the all aluminum front panel, Lian Li did an impressive job getting the curved shapes without using plastic. To help your disc drive match they also included a drive bay cover that hits your drive without limiting its use. Both the power and hard drive indicator lights are hidden just to the right of the disc drive. The bottom half of the case is a mesh design that lets the two 120mm fans breathe to keep everything cool.

IMG_6698_lr

IMG_6699_lr

IMG_6701_lr

IMG_6702_lr

IMG_6703_lr

IMG_6704_lr

Inside

Inside I found the same quality and attention to detail as the outside of the case. A few things like the PCI slot hold-down is just like the LanCool, the same goes for the easy-to-use 5 ¼ drive bay latches. The hard drive trays are also the same but made out of aluminum this time around. With two hidden hard drive bays up top where you normally would find a power supply and six trays on the front you shouldn’t have any trouble finding a place to store all of your hard drives.

IMG_6710_lr

Too keep everything cool you will find two 120mm fans in front of the hard drive trays and one in the back. Compared to most of today’s gaming cases with 200+mm fans this does not seem like a lot; but it should be more than enough to keep most rigs cool.

IMG_6708_lr

IMG_6709_lr

IMG_6711_lr

Lian Li made it easy to route all of your cables with a few well placed holes. Speaking of that they also gave a large access hole behind your CPU for easy installation of heatsinks. Another feature that the PC-B70 has is a full PCI card support, you don’t see them on many cases, if you’re planning on moving your rig around much the support will prevent you from breaking anything. Also to keep noise down both side panels have been given the sound deadening treatment.

IMG_6712_lr

IMG_6713_lr

IMG_6714_lr

IMG_6716_lr

IMG_6722_lr

Performance

As you should already know by now I was impressed with the quality of the PC-B70. Of course I did run into a small issue almost right away. Both of the side panels fit so snug that they wouldn’t come off. A few small bends and this was never an issue again, but with the case being of the highest quality, I was shocked that I found any issues like that. Outside of that one issue everything else went very smooth. Installing everything couldn’t be much easier with quick latches for both the PCI cards and the 5 ¼ drive bays. Wire management was great, lots of room for wires along with a hidden wire hold-down tucked away near the hard drive bays.

IMG_6723_lr

IMG_6724_lr

IMG_6725_lr

IMG_6726_lr

With everything built the noise level was very good, now I remember why some people don’t want 15 different fans packed into their case. The three fans did keep the rig more than cool enough during my testing. Lian Li made sure the PC-B70 performed as well as it looks.

IMG_6727_lr

Overall

Slick all aluminum design, wire management, lots of room, in a quiet package. Lian Li worked their magic on the PC-B70 and came out with one of the best cases that we have had the pleasure to review. Of course nothing is perfect, I did have problems with the side panels. But everything else makes up for that easily fixed issue. It may not have the crazy styling that most of the cases we see, but there is an elegance about the PC-B70 that is unmatched.
