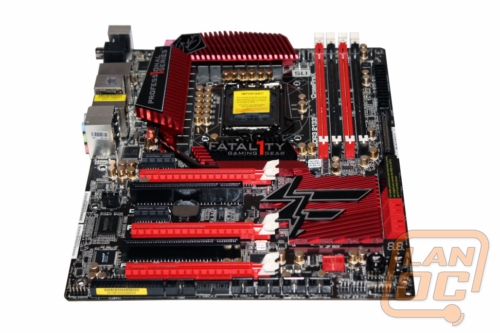

frontSix years have passed since Jonathan 'Fatal1ty' Wendel met with the minds of Abit Corporation to design a motherboard optimized for PC gaming enthusiasts. That board not only met expectations, but also excelled by including many of the features that gamers sought as standard. Just last month, an announcement of a new partnership between Fatal1ty and ASRock was unveiled, birthing a modern version of the gamer's board. A lot has changed since 2004, and today we put it to the test of next-generation gaming.

Product Name: Fatal1ty P67 Motherboard

Review Sample Provided by: Fatal1ty Brand

Review by: Wes

Pictures by: Wes

Specifications



Platform



- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- All Solid Capacitor design (100% Japan-made high-quality

Conductive Polymer Capacitors)

CPU

- Supports 2nd Generation Intel® CoreTM i7 / i5 / i3 in LGA1155

Package

- Advanced V16 + 2 Power Phase Design

- Supports Intel® Turbo Boost 2.0 Technology

- Supports Intel® K-Series unlocked CPU

- Supports Hyper-Threading Technology

Chipset

- Intel® P67

Memory

- Dual Channel DDR3 memory technology

- 4 x DDR3 DIMM slots

- Supports DDR3 2133(OC)/1866(OC)/1600/1333/1066 non-ECC,

un-buffered memory

- Max. capacity of system memory: 32GB

- Supports Intel® Extreme Memory Profile (XMP)

Expansion Slot

- 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 or dual at

x8/x8 mode; PCIE5: x4 mode)

- 2 x PCI Express 2.0 x1 slots

- 2 x PCI slots

- Supports ATITM Quad CrossFireXTM, 3-Way CrossFireXTM and

CrossFireXTM
- Supports NVIDIA® Quad SLITM and SLITM


Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio

Codec)

- Premium Blu-ray audio support

- Supports THX TruStudio PROTM

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111E

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efficient Ethernet 802.3az

- Supports Dual LAN with Teaming function

SATA3

- 2 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1,

RAID 10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and

"Hot Plug" functions

- 4 x SATA3 6.0 Gb/s connectors by Marvell SE9120, support NCQ,

AHCI and "Hot Plug" functions

(SATA3_M4 connector is shared with eSATA3 port)

USB 3.0

- 4 x Rear USB 3.0 ports by Etron EJ168A, support USB 1.0/2.0/3.0

up to 5Gb/s

- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Etron

EJ168A, supports USB 1.0/2.0/3.0 up to 5Gb/s

Rear Panel I/O

- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x Coaxial SPDIF Out Port

- 1 x Optical SPDIF Out Port

- 4 x Ready-to-Use USB 2.0 Ports

- 1 x eSATA3 Connector

- 4 x Ready-to-Use USB 3.0 Ports

- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)

- 1 x IEEE 1394 Port

- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in /

Front Speaker / Microphone

Smart Switch

- 1 x Power Switch with LED

- 1 x Reset Switch with LED

- 1 x Clear CMOS Switch with LED

Connector

- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID

10, RAID 5 and Intel Rapid Storage), NCQ, AHCI and Hot Plug functions

- 6 x SATA3 6.0 Gb/s connectors

- 1 x ATA133 IDE connector (supports 2 x IDE devices)

- 1 x Floppy connector

- 1 x IR header

- 1 x COM port header

- 1 x HDMI_SPDIF header

- 1 x IEEE 1394 header

- 1 x Power LED header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- CD in header

- Front panel audio connector

- 4 x USB 2.0 headers (support 8 USB 2.0 ports)

- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

- 1 x Dr. Debug with LED

BIOS Feature



Support CD

- Drivers, Utilities, AntiVirus Software (Trial Version), Software Suite

(CyberLink DVD Suite - OEM and Trial)

Accessories

- 1 x SLI_Bridge_2S Card

- Quick Installation Guide, Support CD, I/O Shield

- Floppy/ATA 133 Cables

- 6 x SATA Data Cables (Optional)

- 2 x SATA 1 to 1 Power Cables (Optional)

- 1 x Front USB 3.0 Panel

- 4 x HDD Screws

- 6 x Chassis Screws

- 1 x Rear USB 3.0 Bracket

Hardware Monitor

- CPU Temperature Sensing

- Chassis Temperature Sensing

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by

CPU or MB Temperature)

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

OS

- Microsoft® Windows® 7 / 7 64-bit / VistaTM / VistaTM 64-bit / XP /

XP 64-bit compliant

Certifications

- FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)


Features
- Premium Gold Caps (2.5 x longer life time), 100% Japan-made high-quality Conductive Polymer Capacitors
- Digi Power, Advanced V16 + 2 Power Phase Design
- Supports Intel® K-Series unlocked CPU
- Supports Dual Channel DDR3 2133(OC)
- Supports ATITM Quad CrossFireXTM, 3-Way CrossFireXTM and CrossFireXTM
- Supports NVIDIA® Quad SLITM and SLITM
- Dual PCIE GLAN with Teaming function
- 2 x Front USB 3.0 ports, 4 x Rear USB 3.0 ports, 6 x SATA3 connectors, 1 x eSATA3 connector, 2 x IEEE1394 ports
- Dr. Debug, Smart Swith Design: Power/Reset/Clear CMOS Switch with LED
- Supports Fatal1ty F-Stream, Instant Boot, Instant Flash, Good Night LED, Multi-Fan Speed Control, AIWI, APP Charger, SmartView
- Combo Cooler Option (C.C.O.)
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), THX TruStudio PROTM and Premium Blu-ray audio suppport
- ErP/EuP Ready
- Free Software : CyberLink DVD Suite - OEM and Trial
- Free Bundle : 1 x SLI_Bridge_2S Card , 1 x Front USB 3.0 Panel, 1 x Rear USB 3.0 Bracket


Packaging
About the only thing you'll take away from a first glance at P67's container is that Fatal1ty, indeed, had a hand in its creation (or at least in the art design). They have included a nice feature popular among other gaming hardware, a windowed-style packaging allowing a direct view of the board itself. Opening the door on the front of the box will reveal this along with feature callouts and a brief story of the professional gamer's rise to fame.

fatal1typ67_1

fatal1typ67_2 fatal1typ67_3

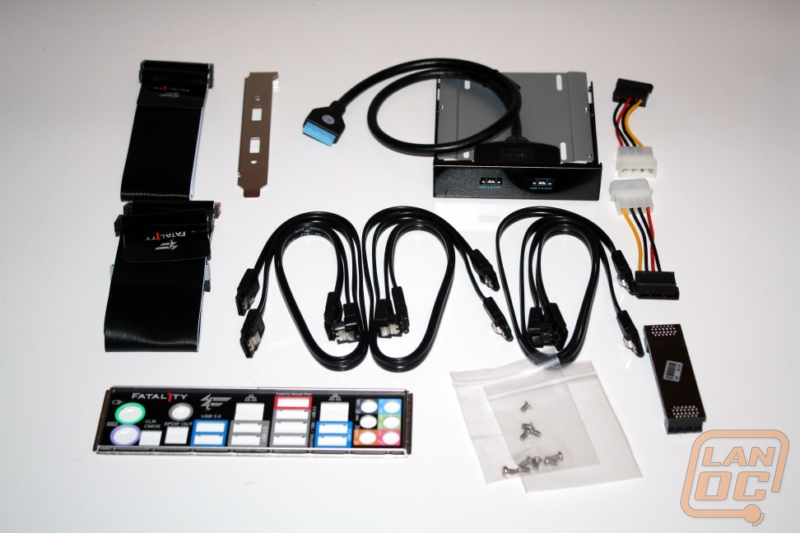

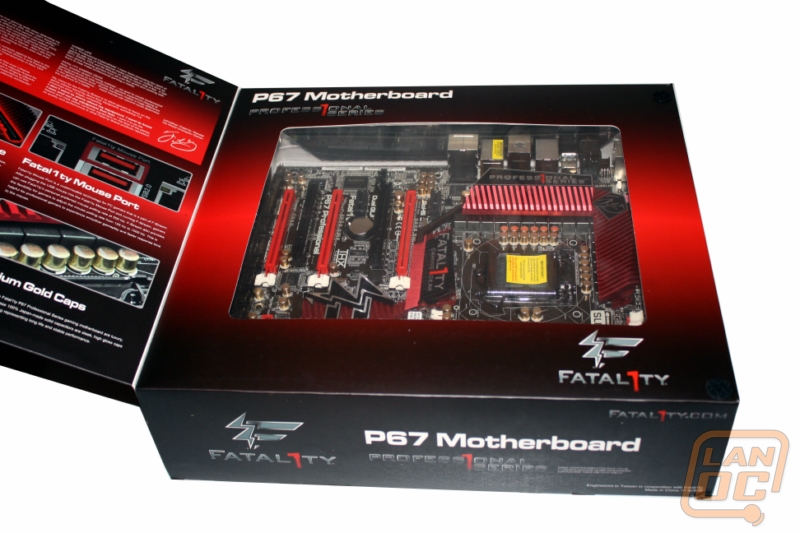

The exterior cover turns out to be a sleeve that slides away leaving a briefcase box that breaks down to two inside: one containing the board, and the other housing the many accessories. With the P67 you will also receive two IDE cables, six SATA cables, two SATA 4-pin Molex power adapters, an SLI bridge, I/O panel cover, USB 3.0 panel adapter and slot cover, and some screws for installation.

fatal1typ67_4

fatal1typ67_5 fatal1typ67_6

Also included is an ironically thick Quick Installation Guide manual, as well as reference leaflets and driver disc.

Board Layout
The P67 Profess1onal comes with three PCI Express x16 slots, supporting up to 3-Way SLI and CrossFireX. The PCI-E slots have been laid out in somewhat of a unique fashion, with a PCI Express x1 available even when using all three x16. Not only does this provide some nice spacing between video cards, but it also allows for some extra expansion in a notoriously cramped area. Two PCI slots are also an option, though using the PCI-E x16 slot above either will block them.

fatal1typ67_8

The board also has a nice run of input headers on the bottom edge for audio, floppy, USB, and so on, as opposed to having them scattered about. This makes finding the headers a cinch and will also make your cable management experience quite a bit easier.

fatal1typ67_10

Also included underneath the LED diagnosis panel are two nice power and reset buttons for easy access in testing or troubleshooting scenarios.

The P67 offers a total of ten SATA connections, six SATA3 and four SATA2 ports, which obviously supports the upcoming generation of drives as well as plenty of room to expand.

fatal1typ67_12

Memory is tackled with four DDR3 DIMM slots with dual channel technology and supporting higher MHz rating associated with overclocking. Speaking of which, the Profess1onal board is equipped with a V16+2 phase running in an 'L' shaped along the socket, which provides stability during overclock.

fatal1typ67_13

The rear I/O panel consists of PS2 keyboard and mice inputs, for those faithful gamers still using the same equipment from '99. High definition audio output is also offered, an important feature to professional gamers, according to Fatal1ty. In addition to the next-gen SATA, four USB 3.0 slots are included on the back panel in addition to the front panel adapter that will create two more for the front of your case. Four USB 2.0 ports can also be found, as well as a clear CMOS button for easy reset. Finally, the P67 pays tribute to the LAN gamer with two gigabit Ethernet ports that allow for both to act as one single connection.

fatal1typ67_16

BIOS

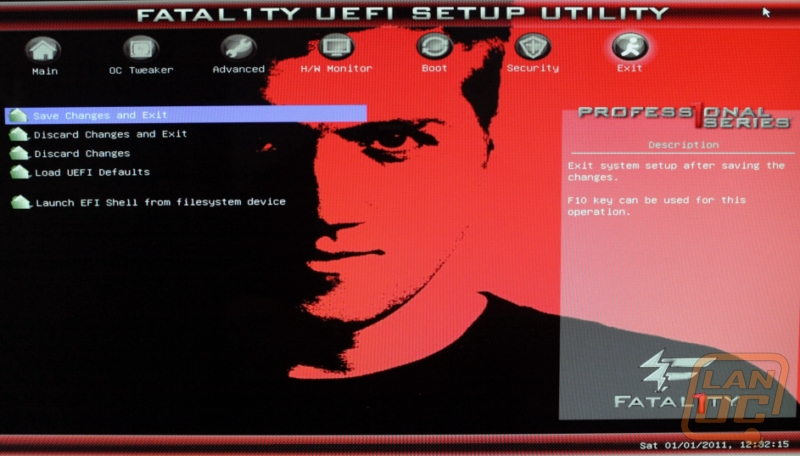

The P67 Profess1onal takes advantage of UEFI technology, the same that drives the MSI Click BIOS system. This means that along with seeing the face of Jonathan Wendell on each screen, you'll also be able to use your mouse to navigate and select options. You'll notice the use of buttons to switch between categories, as opposed to the traditional tabs and arrow key method.

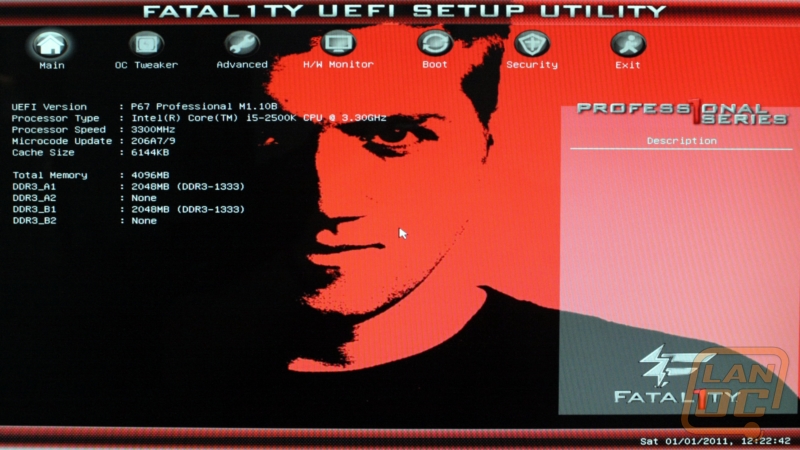

The main screen will give you a summary of your system, from UEFI version to speeds and memory totals. The next category allows users to 'tweak' an overclock, the majority of the actual voltage controls occupying the latter half of the menus. The UEFI utility also allows for component configuration and an instant update flash option.

The Hardware monitor holds Vcore values to be tweaked, as well as a read out of processor and motherboard temperatures, and corresponding fans and speeds if you find the need to up RPM. Boot orders and security options round out Fatal1ty's setup utility.

fatal1typ67bios_1 fatal1typ67bios_2 fatal1typ67bios_3

fatal1typ67bios_4 fatal1typ67bios_5 fatal1typ67bios_6

fatal1typ67bios_7 fatal1typ67bios_8 fatal1typ67bios_9

Cooling

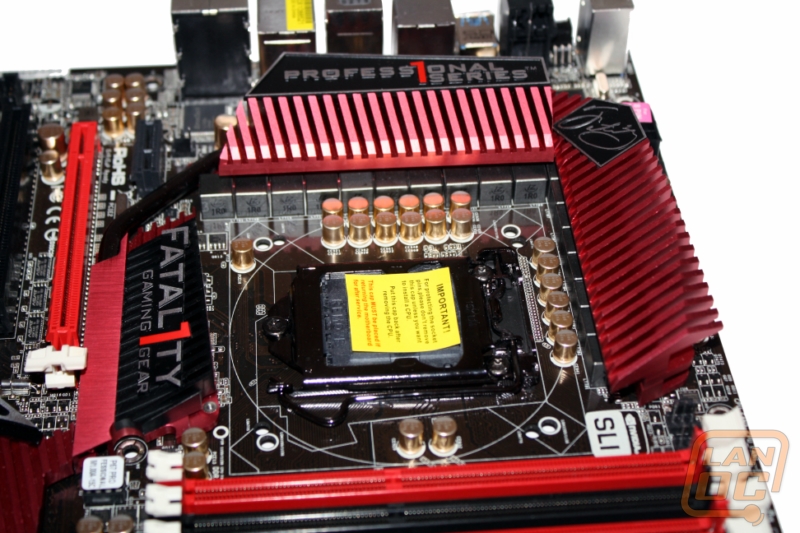

Though the P67 boards in general are moving towards the trend of leaving the Northbridge heatsink, Fatal1ty has opted for a low-profile design boasting the logo of the gaming gear, accompanied with its fellow heatsinks to achieve a nice overall appearance that earns that windowed packaging.

fatal1typ67_14

Our Test Rig
Intel i5-2500K Socket 1155

Crucial Ballistix Tracer 1600MHz RAM 4GB

OCZ Agility 2 60GB SSD

Cooler Master Silent Pro 850W PSU

Sapphire HD 6970 (Build 1)

Nvidia GTX 580 SLI (Build 2)

Stock CPU Cooler

Microcool Banchetto 101 Test bench

Performance
There are a lot of features outside of direct number results that speak to the quality of the Fatal1ty P67. First is the appearance, which is often a common interest of gamers. The previous board from Abit tried to achieve that enthusiast look by including component fans and LED lighting built-in to the backside of the board. The P67 approaches its looks in a more subtle manner, sticking with a very consistent black/red color scheme and some nice logo badges that even non-Fatal1ty hard cores will enjoy. That theme is only reinforced with the inclusion of all black cables that will ensure a great appearance for any build. The board itself is simply great to look at.

fatal1typ67_20

The P67 includes a few features that really appeal to the gaming crowd, and truly computer enthusiasts in general. The first is the mouse port, with its ability tweak the polling rate of mice from 125 to 1000 Hz using the F-Stream utility. The polling rate, simply put, is how often the mouse sends information to the computer. Being able to set this rate higher than the average 125 Hz allows for a sense of control and precision that many hard core gamers demand.

Also boasted is the XFast USB technology, which is nothing more than the marketing name for the use of the Etron USB 3.0 chipset. Standing against the competing NEC chipset, the Fatal1ty P67 is advertised to see read and write speeds at least 30% faster. Of course, we wanted to test this ourselves, but unfortunately could only find several USB 2.0 externals laying around. Regardless, we decided to give it a run and did find a small increase of about 10Mbps or so.

I've mentioned it a few times before, but I wanted to go a bit more in depth with it here. Included with the P67 is a USB 3.0 front panel adapter, which will create two USB 3.0 ports from a 3.5" expansion bay. The adapter also serves a dual-purpose of a 2.5" drive tray, allowing a hard drive or SSD to be mounted with it internally.

fatal1typ67_22

fatal1typ67_21 fatal1typ67_23

Though the end results of the board are going to rely heavily on the hardware it works with, we put the P67 through our usual test system, a combination of synthetic and the especially appropriate real in-game benchmarks. For a wider performance coverage, we have included results using both the Sapphire HD6970 and the Nvidia GTX 580 in SLI (with the exception of 3DMark 11 for the GTX 580, since SLI is not supported).

In-Game Benchmarks

ingamehd6970

ingamegtx580sli

On the AMD spectrum, the Fatal1ty board was close to on par with the other socket 1155 boards we've tested, but wasn't a leader in any title. Regardless, the board helped bring in frames-per-second second only to the Gigabyte model in the extremely taxing Metro 2033 benchmark, and held its own against in the popular war FPS titles Black Ops and Bad Company 2. The P67 Profess1onal truly shined, however, when equipped with SLI, leading three of the benchmarks including Metro 2033, and outperforming all models in Bad Company 2 by nearly seven frames. Interestingly, this P67 lacked in performance in our DiRT 2 test.

Synthetic Benchmarks

3dmarkvantageperformancegtx580sli

3dmarkvantagehighgtx580sli

3dmarkvantageperformancehd6970

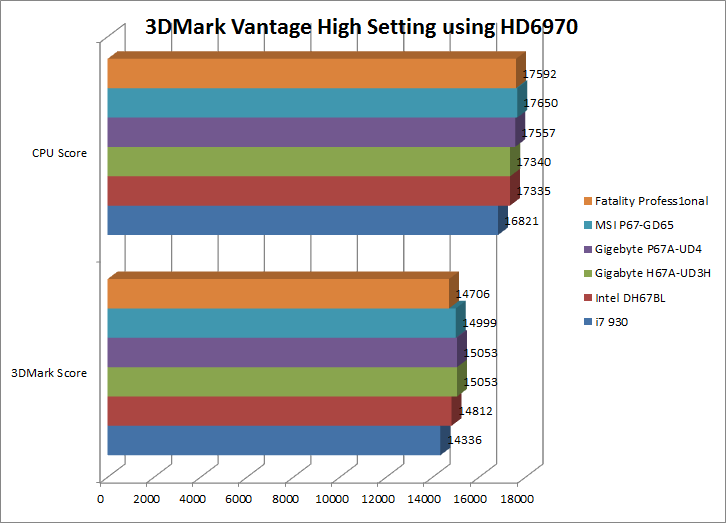

3dmarkvantagehighhd6970

3dmark2011performancehd6970

3dmark2011extremeHD6970

pcmarkhd6970

3dmarkvantageperformancegtx580sli

3dmarkvantagehighgtx580sli

pcmarkgtx580sli

3DMark and PCMark give us a more in-depth representation of the components as a whole, including the CPU performance which is a critical comparison between whats available when choosing what path to take the new socket. The Fatal1ty board continues to excel when tested in the SLI set-up when the CPU score is taken into consideration, leading by nearly 1000 points. PCMark revealed a few areas in which the the P67 Profess1onal such as HDD, but in everything else it excelled.

Overall
Fatal1ty Co. aimed to create a niche in the gaming market with a board designed specifically for gamers. Just as before, they have achieved a great creation of attractiveness, functionality, and performance. The board has a consistent red-black color scheme that will look good in any windowed case (especially those with a painted interior), several features such as polling rate tweaking, clickable BIOS, and USB boost that appeal directly towards the gaming crowd, and numbers that show not only support for today's games but a good investment as the industry grows.

fvrecomended
