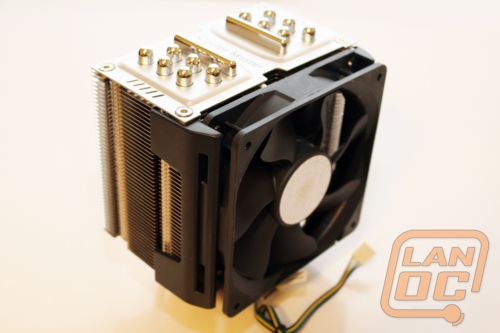

titleFrom a quick glance, the TPC 812 looks very similar to the Hyper 612 PMW from Cooler Master we reviewed recently, and given the similarities in their name, you'd be likely to accept that and move on. Cooler Master has engineered many subtle differences with the new cooler in hopes of improving functionality and performance, including vertical vapor chamber to pull the heat up into the heatsink away from the CPU. So take another look and read on as we put the latest air solution from Cooler Master to our tests.

Product Name: Cooler Master TPC 812

Review Sample Provided by: Cooler Master

Written by: Adam and Wes

Pictures by: Wes


Specifications

Model

RR-T812-24PK-R1

CPU Socket

Intel Socket:
LGA 2011 / 1366 / 1156 / 1155 / 775 *

AMD Socket:
FM1 / AM3+ / AM3 / AM2+ / AM2

CPU Support

Intel:
Core™ i7 Extreme / Core™ i7 / Core™ i5 / Core™ i3 / Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium / Celeron

AMD:
FX-Series / A-Series / Phenom™ II X4 / Phenom™ II X3 / Phenom™ II X2 / Phenom™ X4 / Phenom™ X3 / Athlon™ II X4 / Athlon™ II X3 / Athlon™ II X2 / Athlon™ X2 / Athlon™ / Sempron™

Dimension

138 x 103 x 163mm (5.4 x 4.1 x 6.4 in)

Heat Sink Dimensions

134 x 74 x 158 mm (5.3 x 2.9 x 6.2 in)

Heat Sink Material

Copper Base / 2 Vapor Chambers
6 Heatpipes / Aluminum Fins

Heat Sink Weight

826g (1.83 lb)

Heat Pipes Dimensions

ø6mm

Fan Dimension

120 x 120 x 25mm (4.7 x 4.7 x 1 in)

Fan Speed

600 – 2,400 RPM (PWM) ± 10%
(1,600 RPM with Silent Mode Adapter)

Fan Airflow

19.17 - 86.15 CFM ± 10%
(59.54 CFM @ 1600RPM)

Fan Air Pressure

0.31 – 4.16 mm H2O ± 10%
(1.99mm H2O @ 1600RPM)

Fan Life Expectancy

40,000 hrs

Fan Noise Level (dB-A)

19 - 40 dBA

Bearing Type

Long Life Sleeve Bearing

Connector

4-Pin

Fan Rated Voltage

12 VDC

Fan Rated Current

0.2A

Power consumption

2.4W

Maximum TDP

300W

Fan Weight

152g (0.34 lb)

Notice

* Supplied accessories may differ by country or area. Please check with your local distributor for further details.

Warranty

2 years
